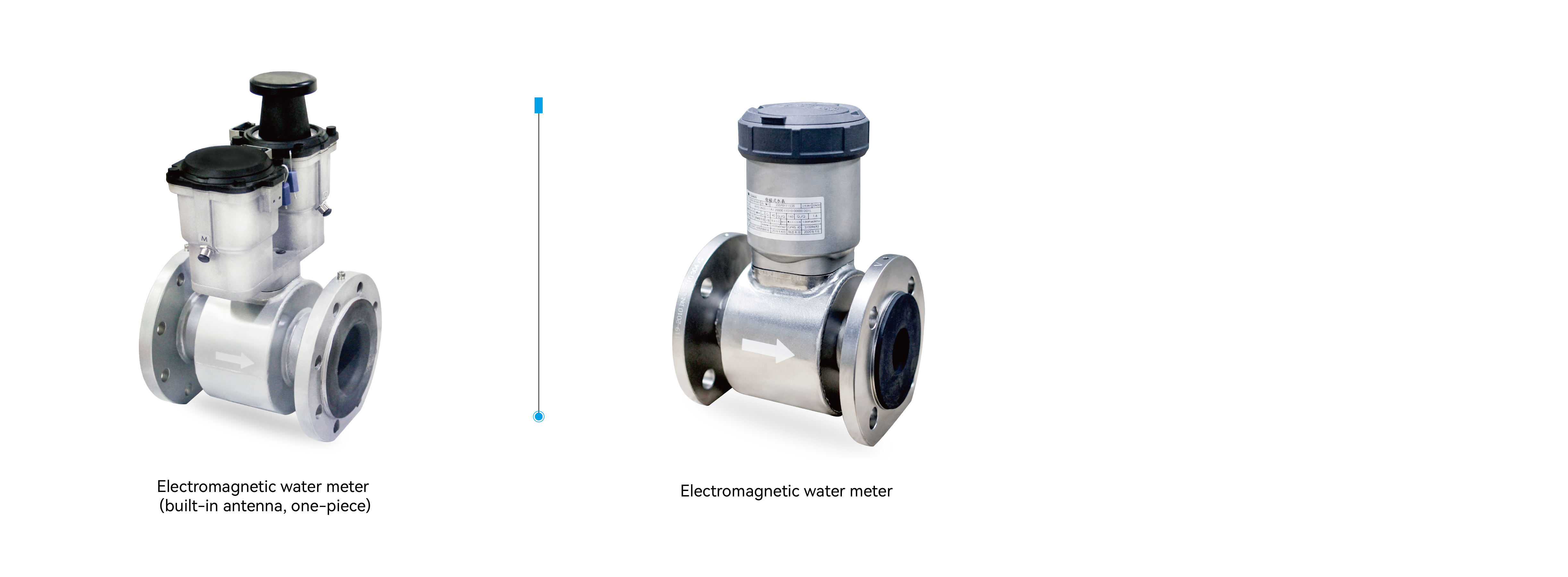

Electromagnetic flow meter

Smart electromagnetic water meter is specially designed for water utility company orindustrial/commercial customer, with the features of wide measurement range, quite starting velocity, high accuracy and strong antiinterference.

Send to Email Get Price

Funtions

1. Wide range Q3/Q1=400; Q2/Q1=1.6 solves the problem of small flow measurement.
2. Starting flow rate 3mm/s, higher than traditional water meters, accurately measures the minimum flow at night.
3. The protection level of the whole machine is as high as IP68, and it can operate normally for a long time in an immersed water environment.
4. Integrated reference electrode, no grounding ring required.
5. Strong anti-electromagnetic interference ability, in line with the electromagnetic environment level E2 standard.
6. Bidirectional measurement.
7. Long-term stability, no maintenance, no moving parts, no wear.
8. Battery-powered, under normal working conditions, the battery life can be guaranteed for 6 years.

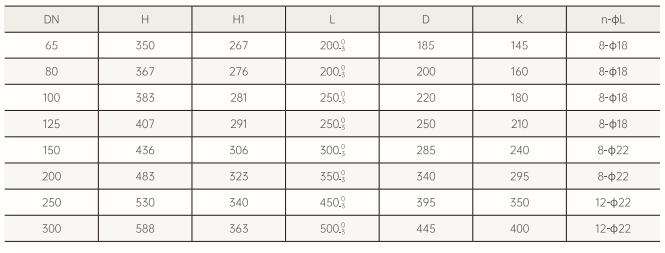

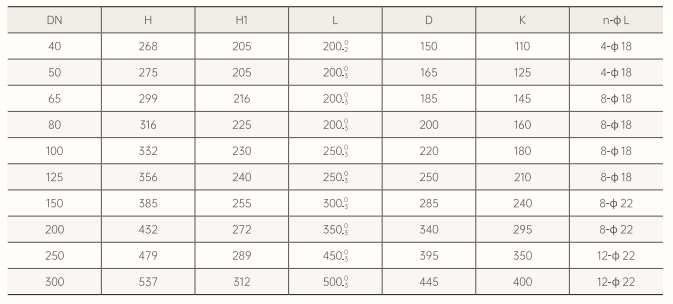

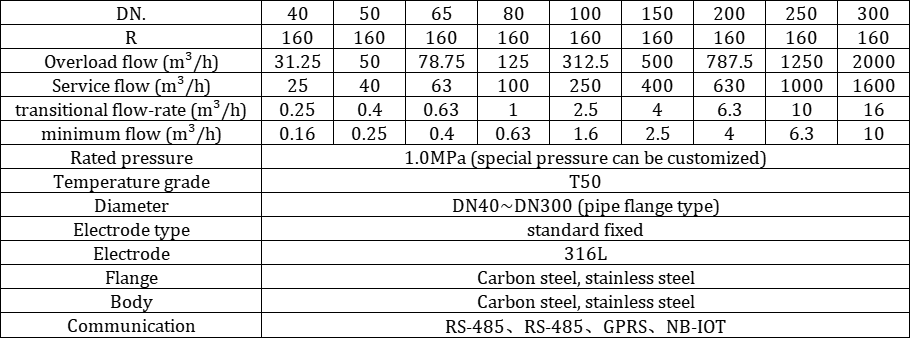

TECHNICAL PARAMETERS:
