OVERVIEW:
A liquid turbine flow meter is an instrument used to measure the flow of liquids. It operates on the principle of turbine rotation, where the rotation speed generated as the fluid passes through the turbine is used to calculate the flow rate. As the fluid flows through the turbine flow meter, its speed drives the turbine to rotate, and the turbine's rotation speed is directly proportional to the flow rate. The rotation speed is measured by a sensing device, which then calculates the flow rate.FUNCTIONS:
1. Measures flow by the rotational speed of the turbine.
2. Can monitor liquid flow in real-time.
3. Maintains high precision even at low flow rates.
4. Converts flow information into electrical signals, making it easy to connect with other devices.
5. Simple structure, suitable for long-term stable operation.
6. Used in various liquid flow measurements, such as in oil, chemical, and food industries.

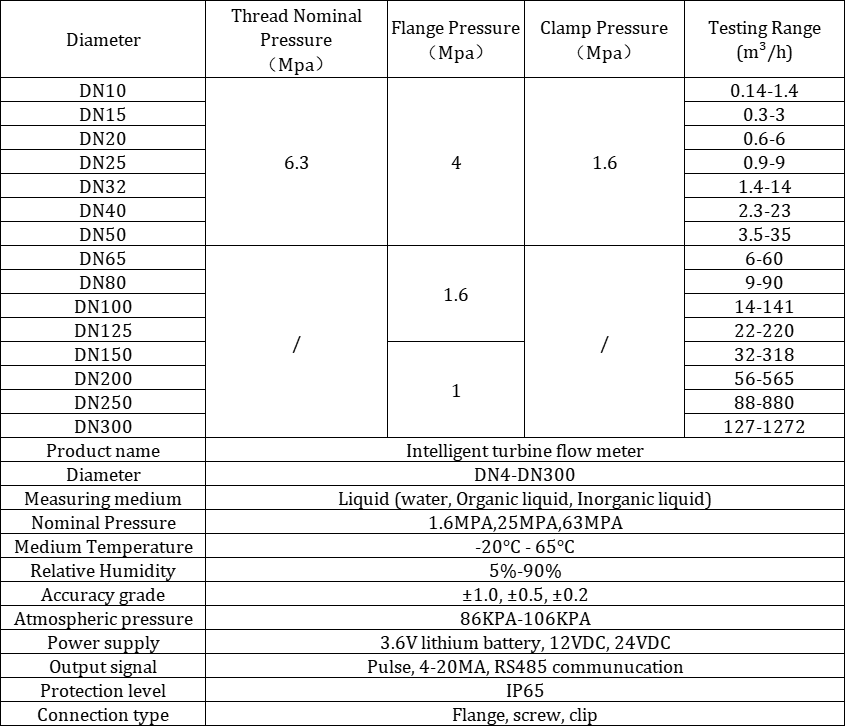

TECHNICAL PARAMETERS:
