4G Large Caliber Ultrasonic Water Meter

Related products of this series：

OVERVIEW:

• The 4G large caliber ultrasonic water meter adopts the advanced ultrasonic measurement technique to measure the water flow in pipes, and upload water meter data by 4G way.
• The whole 4G meter reading system consists of wireless ultrasonic water meter, 4G modem, and monitoring management software. The management center can read and monitor water meter accumulated water consumption, instantaneous water flowrate info by 4G network directly.
• The FS smart water meter upload data info through 4G to management center, such as accumulated consumption curve, real time accumulated consumption, instantaneous flow etc. Besides, the water meter also can detect the pipe pressure. It will collect the pipe pressure data to management center at fixed time. The administrator could check the data through software, if there is abnormal, the alarming message will be uploaded to management center. The management center can transmit alarming message to administrator for them check and resolve in time.

Main functions and advantages:

• Adopting advanced ultrasonic measurement technology to accurately measure, display and store the amount of water flowing through the pipeline.
• Adopting advanced technologies such as segmental calibration and automatic potential tracking.
• Has the advantages of high measuring accuracy, wide range ratio, strong reliability, long life and so on.
• High metering precision, simple construction, simple operation, remote transmission, read and control, conducive to modern management.
• Support ladder water price, respond to the national energy saving and emission reduction policy, and facilitate water price adjustment.
• Various query statistics and data analysis functions, convenient for data collection and statistics.
• Fully waterproof technology design, waterproof grade reaches IP68, suitable for outdoor ground, underground table wells and other occasions.

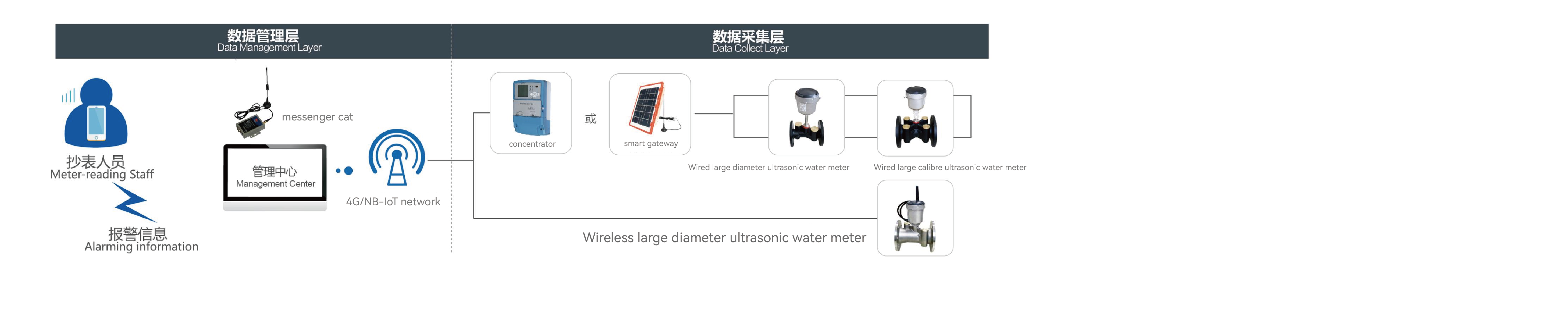

System Structure：

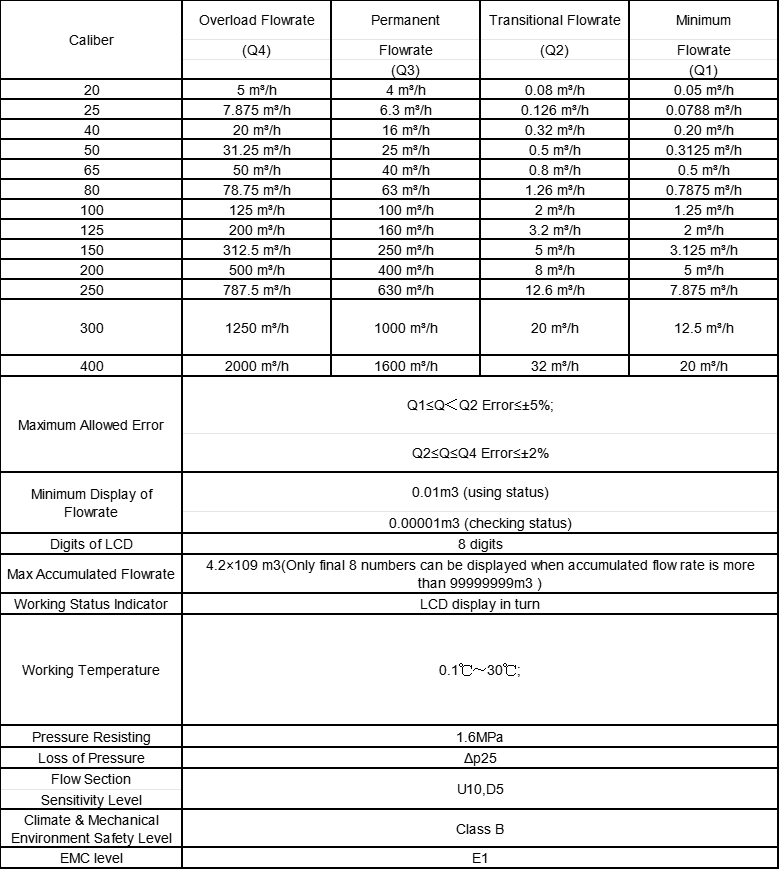

TECHNICAL PARAMETERS:

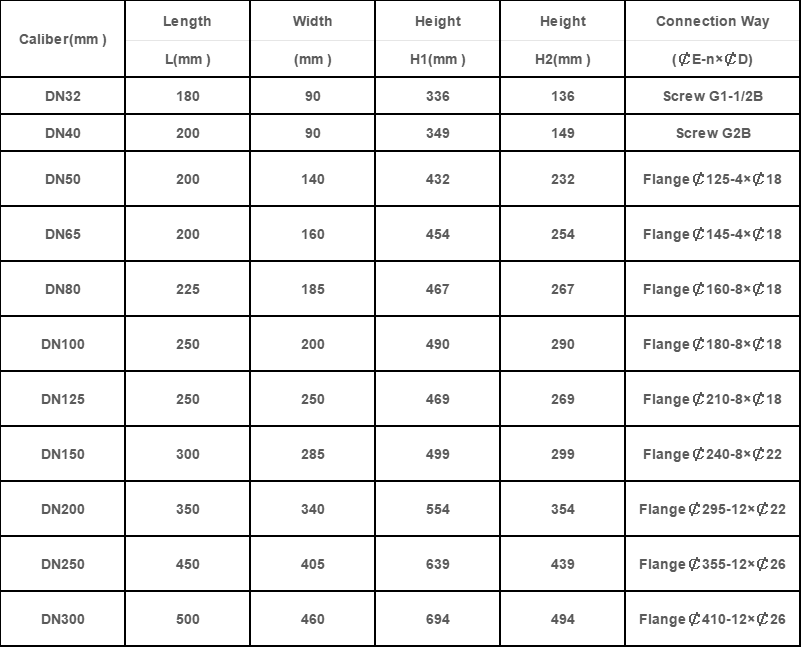

DIMENSION:

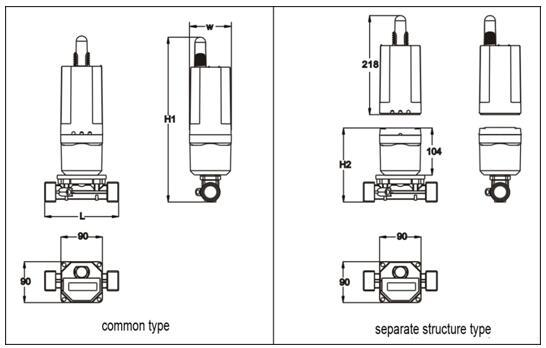

1) Dimension of DN32-DN40

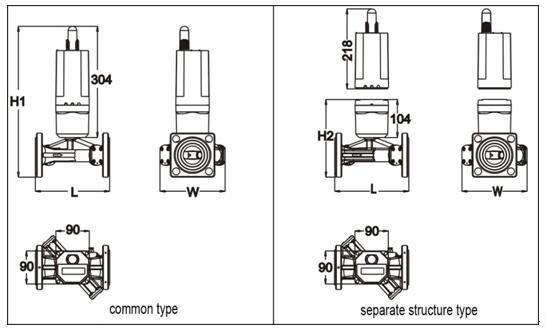

2) Dimension of DN50~DN300

MAIN TECHNIQUES:

1. Totally seal design, waterproof, moisture proof, anti-attack and against broken.

2. Easy for installation, can be installed horizontally or vertically.

3. Smart water meter with remote valve control: there is no wire connection between smart water meter and valve controller, easy for installation.
