OVERVIEW:
A vortex flow meter is an instrument that measures flow rate by detecting the frequency of vortices generated as fluid flows past a non-streamlined obstacle. It is suitable for measuring gases, liquids, and steam, and offers advantages like no moving parts, high accuracy, and broad adaptability, especially in high-temperature, high-pressure environments. Applications include monitoring the flow of steam, industrial gases, and liquids.
FUNCTIONS:
1. Measures both volume and mass flow.
2. Tracks cumulative flow for usage and energy monitoring.
3. Ensures accuracy under changing conditions.
4. Alerts for high/low flow or equipment issues.
5. Supports remote data transmission to control systems.
6. Records flow history for analysis.
7. Shows real-time flow and cumulative totals.
8. Identifies faults for timely maintenance.
9. Works reliably in industrial environments.

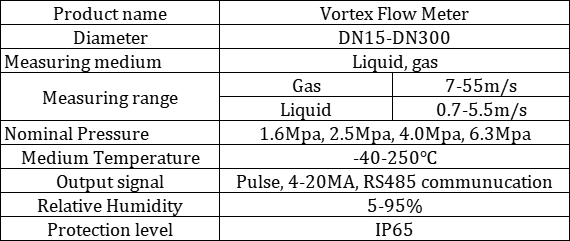

TECHNICAL PARAMETERS:

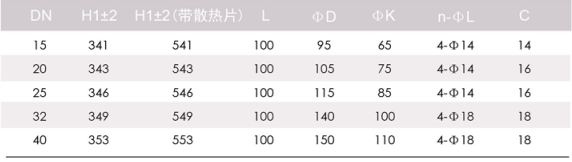

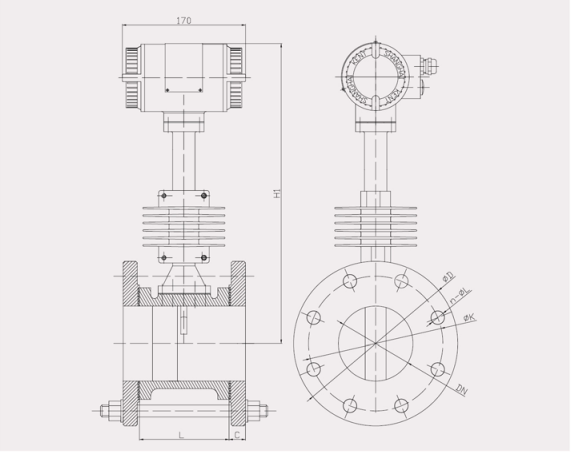

DIMENSION:
