Product Function
Commercial non-contact IC card gas meter, consisting of controller, base meter and valve, is used to measure the gas flow in the pipeline, and at the same time, it has prepayment and control functions. Users will give the gas bill to the management department, the management department will write the purchased gas quantity into the IC card, users will input the information in the IC card into the gas meter, the gas meter will automatically open the valve to supply gas, in the process of users' use, the micro-computer in the gas meter will automatically reduce the remaining amount of the gas meter will automatically close the valve to cut off the gas after the purchased gas is used up, and the users need to re-purchase the gas after swiping the card in order to open the valve to supply the gas.
Key Technology
- Non-contact IC card (radio frequency card) technology: using radio frequency card technology, applying wireless way to transmit data, solving the problem of waterproof, moisture-proof, oil smoke-proof, anti-attack.
- Fully sealed design: all lines are sealed with high-performance potting adhesive, no exposed electrodes, good sealing, to ensure that the circuit board in the humid, oily smoke environment for a long time and stable work.
- Ultra-low power consumption technology: 4 No.5 dry battery power supply, the battery can be used for more than 2 years.
- Motor-valve technology: Adopting motor-valve technology, reliable work, small pressure loss.
FUNCTIONS：
- Prepaid Function
- Emergency Function
- Two-way data protection
- Anti-attack of external magnetism
- Double Display

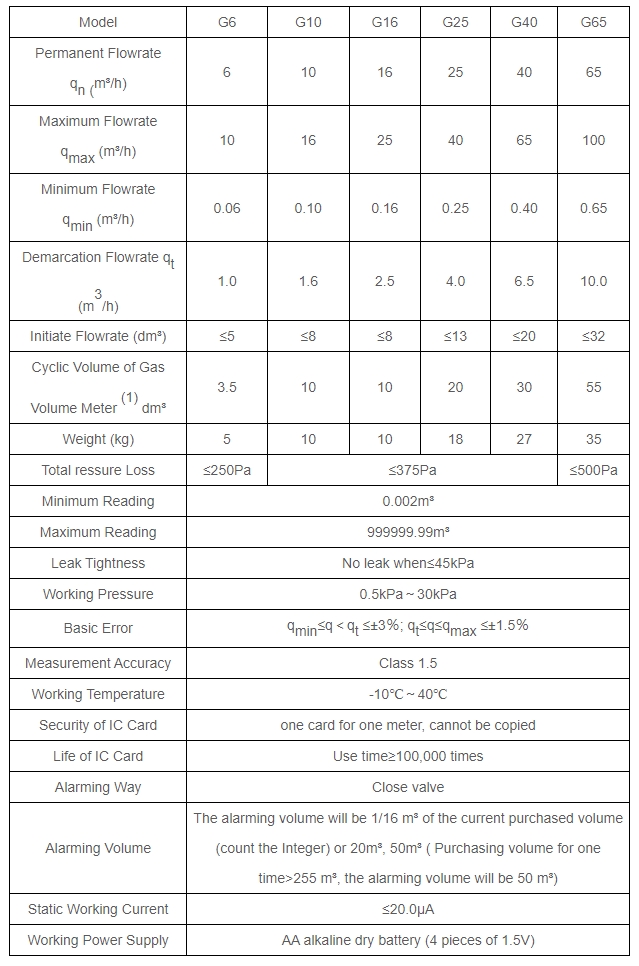

TECHNICAL PARAMETERS：

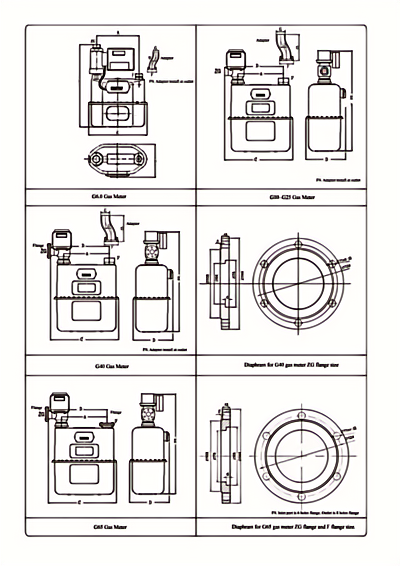

DIMENSION：
MAIN TECHNIQUES：
1. Contactless IC card (RF card) technology, wireless data transmission, waterproof , moisture-proof and anti-attack.
2. Micropower consumption technology: adopt timing test technology, the normal power consumption is less than 25μA, such technique can prolong the battery life.
3. Electric machine valve: adopt modern electric machine valve, reliable working and low pressure loss.
4. Totally sealed design: all the circuits are sealed by high performance casting glue, so there is no exposed electrode, good leak tightness.
5. Anti-attack of external electricity and magnetism: If the gas meter is attacked by external electricity and magnetism, it will automatically close valve and give indication.
6. Micro-computer and micro-storage technique: high integrated and high reliability.Inquiry
