Product Function
This gas meter is based on microelectromechanical systems technology, using a flow sensor chip with thermal mass flow principle, developed a new generation of all-electronic intelligent gas meter, this product does not need the conventional gas meter on the temperature and pressure compensation to achieve the quality of gas flow measurement.

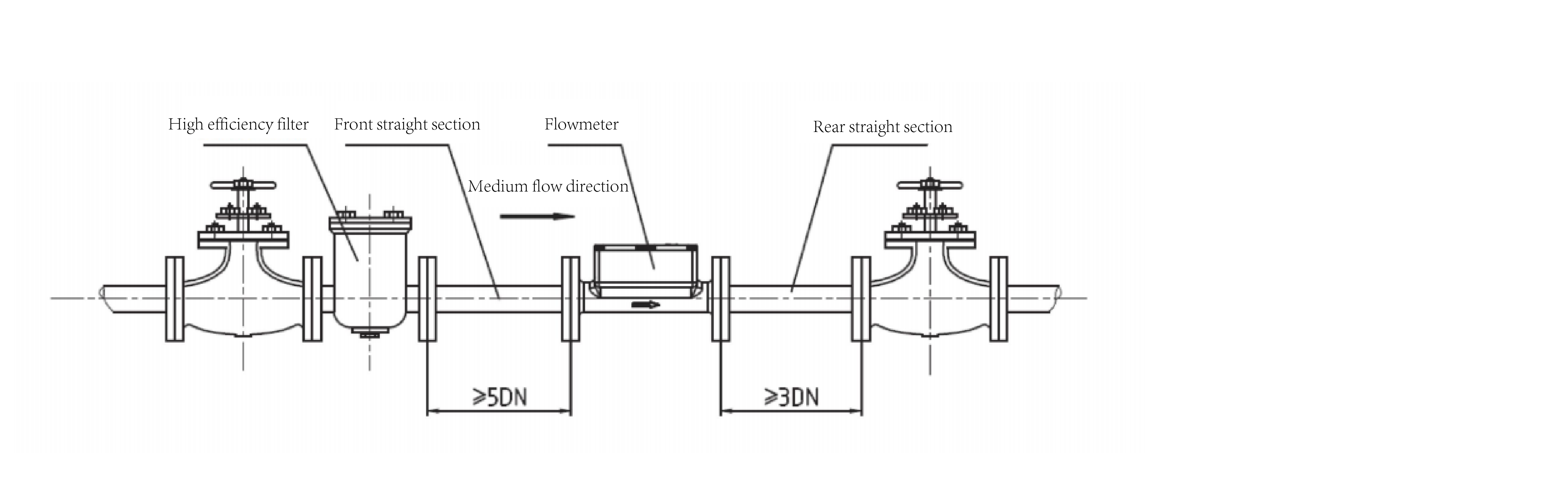

Installation diagram
Technique Parameter
| sports event | G16 | G25 | G40 | G65 | G100 | G160 |
| Nominal diameter mm | 32 | 50 | 50 | 50 | 80 | 80 |
| Maximum flow m3/h | 25 | 40 | 65 | 100 | 160 | 250 |
| Minimum flow m3/h | 0.25 | 0.40 | 0.65 | 1.00 | 1.60 | 2.50 |
| Starting flow m3/h | 0.16 | 0.25 | 0.40 | 0.65 | 1.00 | 1.60 |
| fundamental | 0.1qmax≤q≤qmax | ±1.5% |
| inaccuracies | qmin≤q＜0.1qmax | ±2.5% |
| Maximum working pressure mPa | 0.2 |
