Related products of this seriesOVERVIEW

Horizontal rotary liquid sealed water meter is used for measuring water flow rate through pipe

Main Features and Benefits：

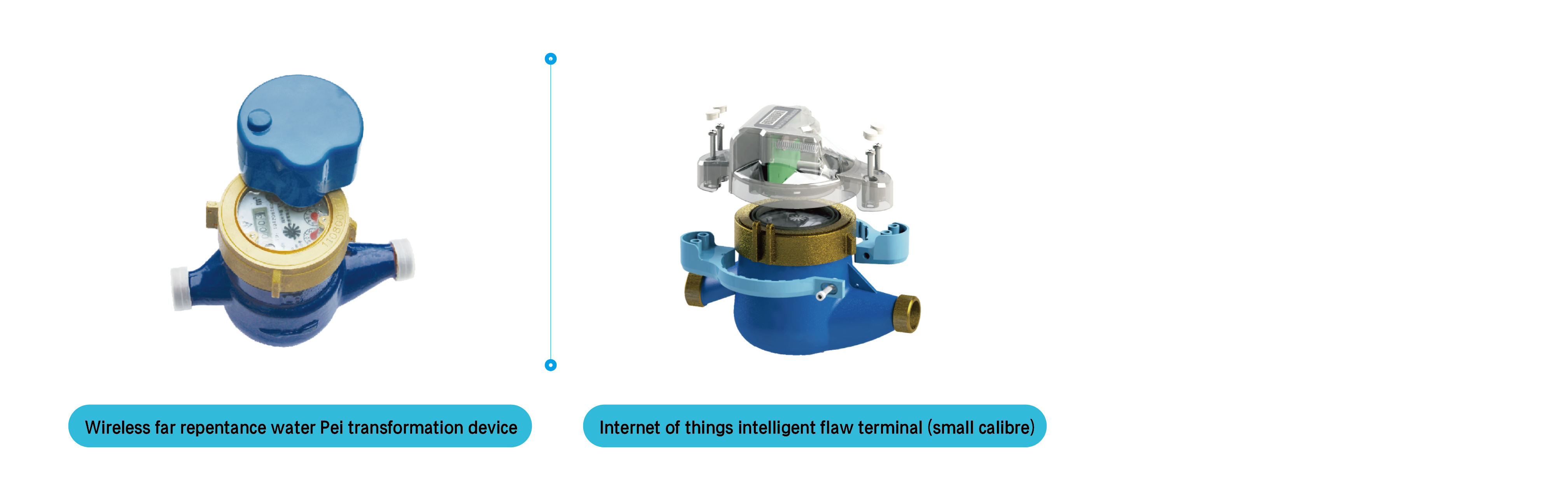

• The wireless remote water meter retrofit device is an upgrade for mechanical water meters;
• The IoT smart eye terminal is a terminal device for upgrading and transforming mechanical water meters with remote transmission;
• (1) Taking pictures and identifying the word wheel through the camera that comes with it, it realises the monitoring of the terminal's data and status changes, and supports the functions of charge management, data storage, data analysis, remote reading and control, and so on;
• (2) Advanced technologies such as positioning, OCR image recognition, parsing, etc., with high recognition correctness rate.



  Technical parameters


  INSTALLATION

  1. The installation of water meter should meet the installation requirements of GB/T778.2

  2. The caliber of water meter shall be based on the size of the pipeline and the usual used water flow is no more than common flow of the water meter; and the installation location shall be avoided insolation, flooding, freezing and pollution, and convenient for installation, removing and reading data.

  3. The sands and stones and other sundries in the pipeline, such as hemp thread shall be cleaned firstly in case of water meter breakdown.

  4. Rotary liquid sealed water meter should be installed horizontally (display face up)

  5. Please leave enough space for repairing, and installation according to water flow direction on the pipe.

  6. Please do not apply too much force when connecting the rotary liquid sealed water meter and pipe, to avoid damaging the meter body and leakage.

  7. If the water meter is installed on the inlet of the boiler, shall install check valve on the outlet of water to prevent the return current of hot water and steam from damaging the water meter.
